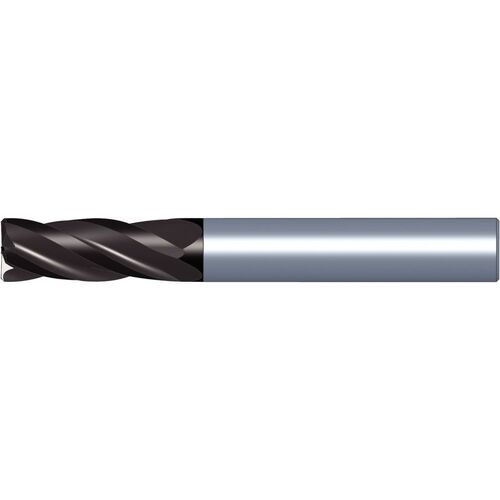

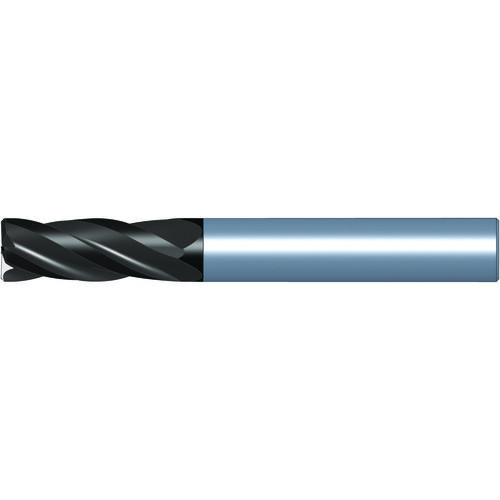

GP SC End Mill 4FL 6x6x13x57
Additional Tariff Surcharge of 5 %
| Cutting Diameter (DC) | 6 mm | Flute Helix Angle (FHA) | 30 Degrees|CW |
| Connection Diameter Machine Side (DCONMS) | 6 mm | Shank Type | Round |
| Depth of Cut Maximum (APMX) | 13 mm | End Shape | Chamfer |
| Overall Length (OAL) | 57 mm | Corner Chamfer Width (CHW) | 0.4 mm |
| Cutting Edge Material | Carbide | Grade | KC633M |
| Coating | AlTiN | Decimal Equivalent | 0.2362″ |
| Flute Count (NOF) | 4 |
Product Features
| Country of Origin | UNITED STATES |
Shipping Info
Package Weight
0.0485
