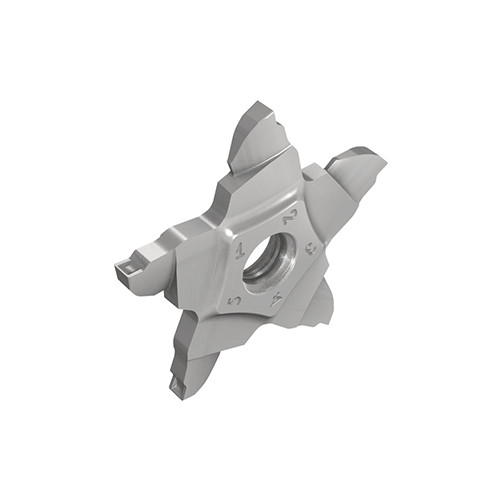

PENTA 34F247-0.20-22R IC908
Pentagonal inserts for face grooving and recessing up to .197″ depth of cut at a minimum .866″ diameter.

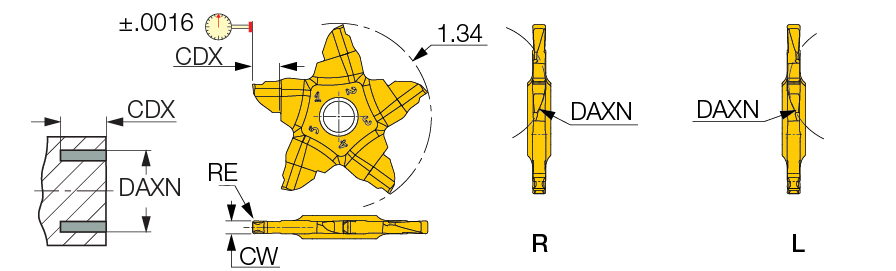

| Cutting Width (CW) | 0.097″ | Tool Type | Face Turn-Groove Inserts |
| Corner Radius (RE) | 0.0079″ | Axial Groove Outside Diameter Minimum (DAXN) | 0.87″ |
| Cutting Depth Maximum (CDX) | 0.197″ | Max. Face Grooving Feed (ffg(max)) | 0.0047 ″/rev |
| Shape | 108° Pentagonal | Min. Face Grooving Feed (ffg(min)) | 0.0031 ″/rev |
| Cutting Edge Material | Carbide | Coolant Supply Property (CSP) | External |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | | Measurement Type | Inch |
| Grade | IC908 | Coating | TiAlN |
| Application | | Face Grooving | | Body Material | Carbide |
Product Features
| Family Description | Pentagonal inserts for face grooving and recessing up to .197″ depth of cut at a minimum .866″ diameter. | Country of Origin | Israel |
| Remarks | For parting and grooving range, click on More Info. |
Shipping Info
Package Length
5.50000
Package Width
2.50000
Package Height
.58200
Package Weight
0.052
