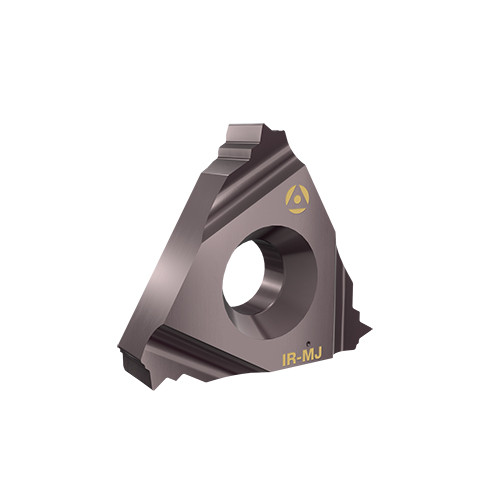

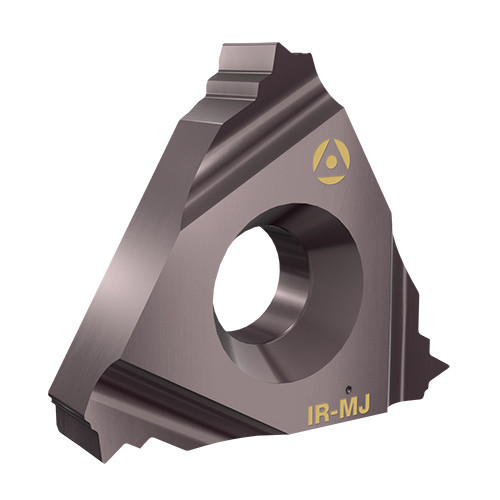

16IR 1.50MJ TA3A
Laydown Threading Insert ; 1.5 mm TP ; Triangle Shape ; 0.63″ Length ; 3/8″ IC ; Carbide ; TA3A ; TiAlN+TiN
| Inscribed Circle Diameter (IC) | 3/8″ | Applicable Material | | Super-Alloys / Titanium | |
| Insert Length (INSL) | 0.63″ | Insert Style | Laydown (LT) |
| Thread Pitch (TP) | 1.5 mm | Cutting Direction (HAND) | Right Hand |
| Corner Radius (RE) | 0.0031″ | Shape | Triangle |
| Grade | TA3A | Tool Type | Threading Regular Inserts |
| Coating | TiAlN+TiN | Measurement Type | Inch |
| Cutting Edge Material | Carbide | Body Material | Carbide |
| Application | | Internal Thread Milling | Internal Threading lay down | Threading Inserts | | Thread Form Type (THFT) | MJ60 |
Product Features
| Family Description | Internal Right Hand MJ ISO 5855 Metric Full Profile Laydown Threading Inserts for the Aviation and Aerospace Industries | Country of Origin | Israel |
Shipping Info
Package Weight
0.000
