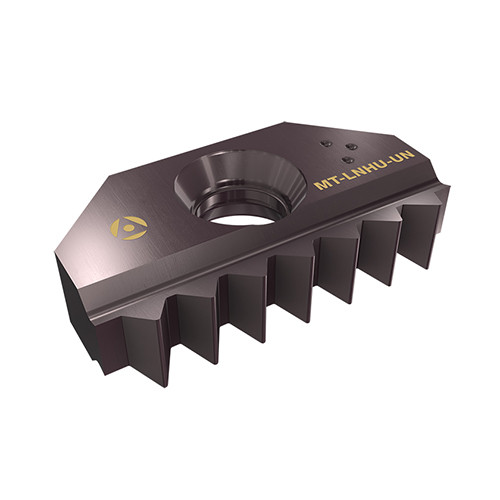

MT TIDC 1574 E12UN AC22

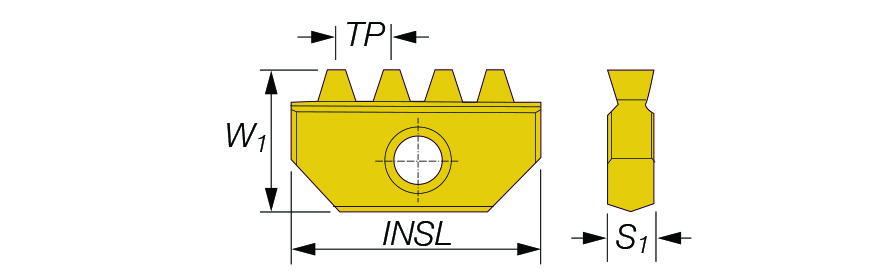

| Thread Pitch (TP) | 2.117 mm | Grade | AC22 |
| Threads per Inch (TPI) | 12 | Shape | Rectangle |
| Insert Length (INSL) | 1.575″ | Cutting Edge Material | Carbide |
| Insert Width (W1) | 0.819″ | Coating | TiAlN |
| Insert Thickness Total (S1) | 0.252″ | Measurement Type | Inch |
| Application | | External Thread Milling | Threading Inserts | | Body Material | Carbide |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | | Thread Form Type (THFT) | UN60 |
Product Features
| Family Description | External (UN, UNC, UNF, UNEF, UNS) Full Profile Thread Milling Inserts for General Industries | Country of Origin | Israel |
Shipping Info
Additional Fees and Notes
0
Package Weight
0.155
