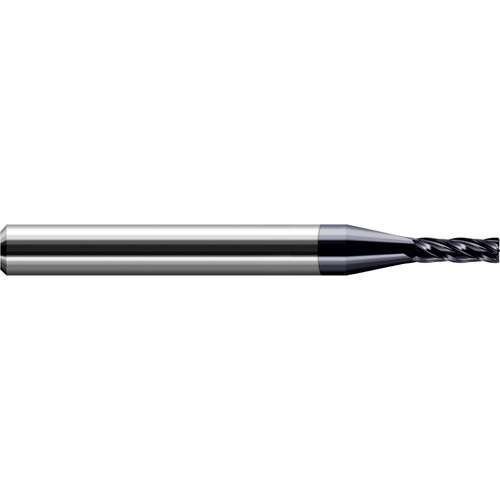

Miniature End Mills - Stub & Standard - 0.1406″ (9/64″) Cutter Diameter × 0.0200″ Radius × 0.4250″ Length of Cut Carbide Corner Radius End Mill, 4 Flutes, AlTiN Coated
| Cutting Diameter (DC) | 9/64″ | Flute Count (NOF) | 4 |
| Connection Diameter Machine Side (DCONMS) | 3/16″ | End Shape | Corner Radius |
| Depth of Cut Maximum (APMX) | 0.425″ | Corner Radius (RE) | 0.02″ |
| Overall Length (OAL) | 2″ | Flute Type | Stub|Standard |
| Cutting Edge Material | Carbide | Decimal Equivalent | 0.140625″ |
| Coating | AlTiN | Measurement Type | Inch |
Product Features
| Country of Origin | USA |
Shipping Info
LocalField10
0
Package Weight
0.028
