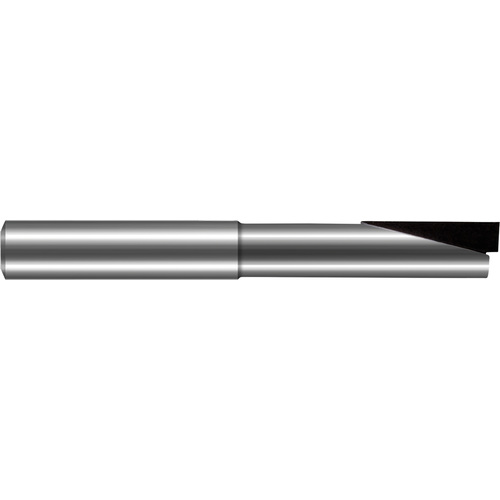

1 Flute - 0.1250″ (1/8) Cutter DIA × 0.1250″ (1/8) LOC × 0.3130″ Reach - PCD Diamond End Mills for Non-Ferrous Materials - PCD Diamond - Square
| Cutting Diameter (DC) | 1/8″ | Applicable Material | | Aluminum / Non-Ferrous Materials | |
| Connection Diameter Machine Side (DCONMS) | 1/8″ | Neck Diameter (DN) | 0.115″ |
| Depth of Cut Maximum (APMX) | 1/8″ | Flute Type | Spiral |
| Overall Length (OAL) | 1-1/2″ | Body Material | Carbide |
| Cutting Edge Material | Carbide | Decimal Equivalent | 0.125″ |
| Flute Count (NOF) | 1 | Measurement Type | Inch |
| Shank Type | Round | Shank Size (SS) | 1/8″ |
| End Shape | Square | Cutting Direction (HAND) | Right Hand |
| Usable Length (LU) | 0.313″ | Single / Double End | Single End |
Product Features
| Country of Origin | USA |
Shipping Info
Package Weight
.020
