| Thread Diameter Size (TDZ) | 1/4″ | Thread Tolerance Class (TCTR) | H3 |

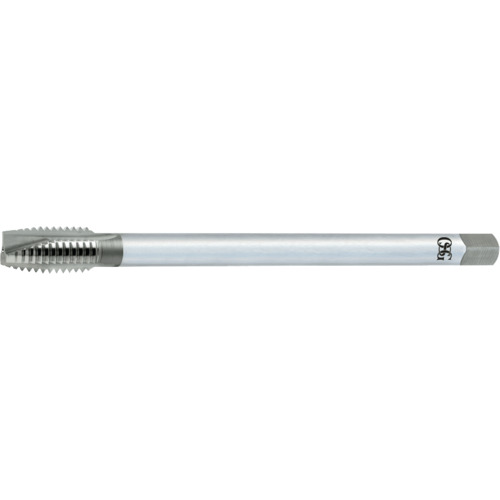

| Threads per Inch (TPI) | 20 | Tool Type | Pulley Tap |
| Thread Standard | NC | Chamfer | 4P-4.5P |
| Overall Length (OAL) | 6″ | Coating | Uncoated |
| Usable Length (LU) | 1.007″ | End Shape | Spiral Point |
| Connection Diameter Machine Side (DCONMS) | 0.255″ | Style | Plug |
| Flute Count (NOF) | 2 | Measurement Type | Inch |
| Applicable Material | | Steel | Cast Iron | Aluminum / Non-Ferrous Materials | | Series/List # | 917 |
| Cutting Edge Material | HSS | Thread Size | 1/4″ - 20 |
Product Features
| Remarks | •Spiral Point Pulley Taps | Country of Origin | Mexico |
Shipping Info
Additional Fees and Notes
0
Package Length
6.20000
Package Width
.60000
Package Height
.50000
Package Weight
0.090
